Comparison of Two DF3500 Chain Versions from CamelConvey
- Share
- Issue Time
- Jan 9,2026
Summary
CamelConvey offers two distinct versions of the DF3500 chain.
CamelConvey offers two distinct versions of the DF3500 chain, differentiated primarily by their inner link construction and manufacturing process. The choice between them represents a balance of performance, durability, and cost-efficiency.
| Feature | DF3500-F (Forged Inner Link) | DF3500-S (Stamped Inner Link) |

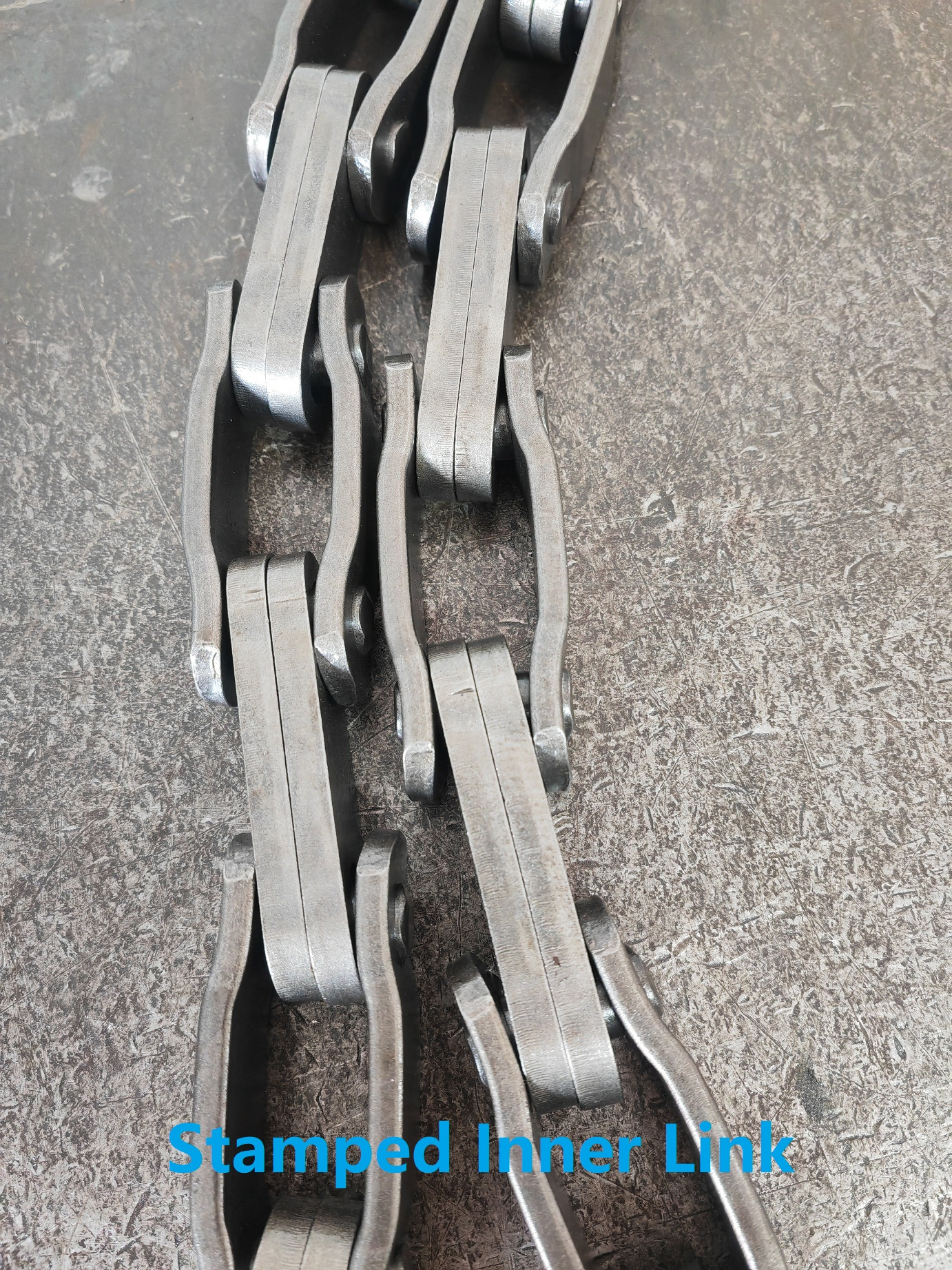

| Inner Link Structure | One-Piece, Solid Design | Two-Piece Assembly (Two side plates joined together) |
Core Manufacturing Process | Forging | Stamping |
Process Description | A heated metal billet is shaped under extreme pressure in a die, forming a single, cohesive inner link. | Metal sheets are punched, sheared, and formed into individual side plates, which are then assembled (typically welded or riveted) to create the inner link. |
Key Performance Traits | 1. High Strength & Toughness: The forging grain flow results in superior mechanical properties.
2. Exceptional Fatigue Resistance: Ideal for high-cycle, heavy-load, or shock-load applications.
3. Superior Structural Integrity: No seams or joints, ensuring maximum reliability.
4. Slightly Higher Weight. | 1. High Efficiency & Cost-Effective: Optimized for large-scale production.
2. Excellent Dimensional Consistency: Precision achieved through tooling.
3. Design Flexibility: Allows for more complex plate geometries.
4. Potential Joint Vulnerability: The assembly point (e.g., weld) can be a potential stress concentrator. |
Typical Application Focus | Engineered for critical, high-demand environments where reliability is paramount:
- Heavy-Duty Machinery
- Severe Industrial Drives
- Mission-Critical or High-Performance Equipment | Designed for standard, high-volume applications with a focus on value:
- General Machinery
- Medium-Duty Conveying
- Agricultural Equipment |
Summary & Selection Guide from CamelConvey
Fundamental Difference: The core distinction lies in the manufacturing philosophy (Forging vs. Stamping), which dictates the structure and ultimate performance profile.
Performance vs Economy
The DF3500-F (Forged) version embodies a "Performance-First" approach. It prioritizes ultimate strength, durability, and seamless reliability, making it the premier choice for the most demanding operations.
The DF3500-S (Stamped) version follows an "Efficiency & Value-First" approach. It delivers robust performance for standard applications while offering excellent economies of scale for bulk procurement.
Choosing the right DF3500 chain depends on your specific operational parameters: load, speed, operating environment, maintenance schedule, and budget.
