Why LPG chain use material casting 40Cr？

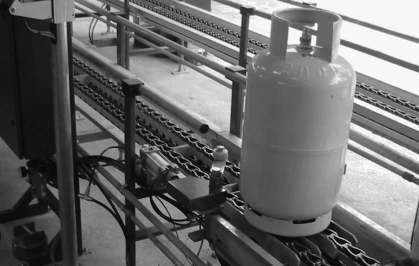

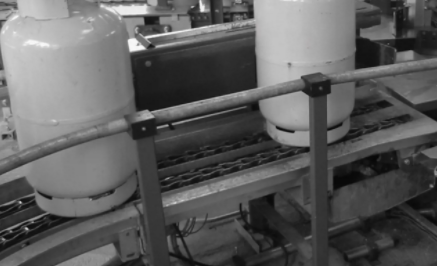

Every day, millions of LPG cylinders roll along conveyor chains in warehouses and distribution centers.

These chains endure violent impacts, corrosive environments, and relentless fatigue—yet rarely fail.

The unsung hero enabling this reliability?

Cast 40Cr steel. Let's break down why this material dominates LPG chain line systems worldwide.

Conveyor chains must conquer

🚛 Shock Loads: Sudden impacts from cylinder drops/rolls.

♻️ Cyclic Fatigue: Endless lifting/moving of heavy loads (50kg+ cylinders).

🌧️ Environmental Attack: Rain, salt, dust accelerating wear & corrosion.

💰 Cost Reality: Demanding performance without premium pricing

Cast 40Cr's 5 Superpowers for LPG Chains

Science: QT treatment (Quenching + Tempering) creates tough sorbite microstructure (Impact toughness ≥50J).

Real-World Win: Absorbs collision energy without brittle fracture—preventing chain snap disasters.

Science: Chromium boosts hardenability, enabling uniform strength depth. Fatigue limit: 300-400 MPa (20%+ higher than carbon steel).

Result: Chains outlast carbon steel alternatives 3:1 in high-cycle loading.

Hardness: HRC 45-50 post-treatment (vs. HRC 20-30 for mild steel).

Application: Critical for pivot joints & rail contact zones where wear kills chains.

Chromium Shield: Forms passive oxide layer—2X better corrosion resistance than carbon steel.

Cost Hack: Paired with low-cost zinc plating/painting for harsh environments.

Casting Benefit	Chain Value
Near-net-shape forming	Intricate links/pins cast directly → Slash machining costs
No welded weak points	Eliminates stress cracks at joints
Mass-production friendly	Drives down cost per unit for logistics scale

Why Alternatives Fail the Test

✔️ Carbon Steel (Q235/45#): Brittle under impact → Snap risk; Poor wear → Frequent replacements.

✔️ Stainless Steel: High cost + Lower strength (e.g., 304 yield strength ≤ 205 MPa vs 40Cr's ≥785 MPa).

The Make-or-Break Factor: Heat Treatment

40Cr's performance hinges entirely on proper QT treatment!

● Red Flags: Untreated/low-quality chains perform like mild steel.

● Quality Checklist: Uniform sorbite microstructure (Metallographic test)

Surface hardness: HRC 45±2

Tensile strength: ≥980 MPa

Cast 40Cr chains dominate LPG chain transport because they masterfully balance:

🔶 Impact Toughness → Survival in brutal handling

🔶 Fatigue + Wear Resistance → Longevity under load

🔶 Cast Economics → Strength without complexity tax

🔶 Chromium Defense → Real-world corrosion fighting

🔶 Cost Intelligence → Scalability for global logistics

This isn't just a material choice—it's a calculated triumph of engineering pragmatism over hype.

Next time you see gas bottles moving smoothly in a warehouse, remember: invisible cast 40Cr chains are doing the heavy lifting.
