Precision-Engineered Solution for Reliable Material Handling
Drive Unit for Overhead Conveyor
- Share
- Issue Time
- 2025/10/22 16:31:47
Introduction

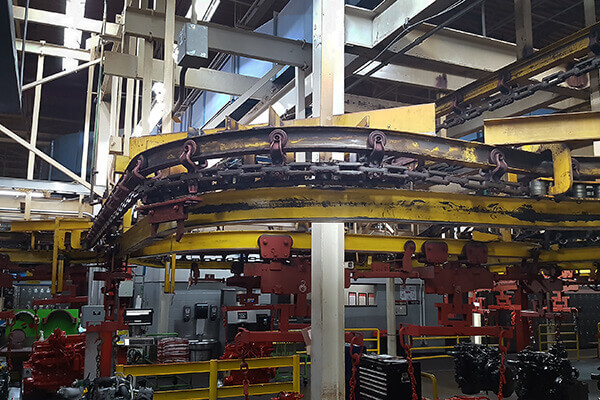

In modern industrial production lines — from automotive assembly to powder coating systems — the overhead conveyor system has become a cornerstone of efficient material transport. A key component of any such system is the Drive Unit, which provides the traction and speed control necessary to keep trolleys moving smoothly and consistently.
This article presents a case study of a custom-designed Drive Unit for an Overhead Conveyor, developed and manufactured based on detailed customer specifications and strict performance criteria. With advanced Caterpillar Drives, a robust Caterpillar chain, and optimized control technology, the solution demonstrates how engineering precision and reliability can work together to achieve superior operational performance.
Project Background and Objectives
A leading automotive components manufacturer approached our engineering team with a requirement for a Drive Unit compatible with their existing overhead conveyor line. The main objective was to upgrade their transport system with a more durable, energy-efficient, and low-maintenance drive solution — without altering their current guide structure or trolley design.
● Product: Drive Unit for Overhead Conveyor
● Purpose: To provide traction force and adjustable speed for trolleys along the guides of an existing production line.
● Design Basis: Customer-provided technical drawings of guide sections and trolley .
This project required not only precision mechanical engineering but also a deep understanding of system integration and drive control dynamics, ensuring seamless performance across the customer's entire manufacturing line.
Compatibility and Structural Integration
Ensuring perfect compatibility with the existing overhead conveyor system was one of the most critical design requirements.
The Drive Unit's guide profiles and connection elements were tailored to match the customer's existing line geometry, with tolerances limited to ±0.5 mm on mating surfaces. Center alignment and flatness of support bases were maintained within ±0.3 mm and ≤0.3 mm/m respectively — ensuring easy installation and vibration-free operation.
Such precision eliminates the need for additional rework on-site and guarantees a "plug-and-play" installation — a key advantage for factories looking to upgrade without costly production downtime.
Engagement and Traction Mechanism: Caterpillar Drive System
The Drive Unit features a Caterpillar Drive mechanism designed to provide smooth, shock-free trolley movement across the full operational speed range.
Key Performance Highlights:
● High Durability: All working surfaces are made of wear-resistant materials with a surface roughness of Ra ≤ 3.2 μm.
● Noise Reduction: Maximum noise level ≤ 60 dB(A) at 1-meter distance.
● Curved Section Adaptability: Minimum radius fully compatible with existing guide drawings.
This precision-built engagement system ensures consistent motion control, even under high load or frequent start-stop conditions — ideal for applications involving painting booths, heat treatment lines, or assembly conveyors.
Performance and Operating Parameters
The Drive Unit was engineered to deliver reliable performance across multiple production modes, ensuring optimal flexibility for the customer's operational needs. | |
| Parameter | Specification |
| Nominal Line Speed | 6 m/min |
| Adjustable Speed Range | 3–10 m/min |
| Speed Setting Increment | ≤1% |
| Speed Stability | ±2% under 20% load variation |
Acceleration/Deceleration | 2–5 seconds (S-curve or linear profile) |
This combination allows smooth synchronization with process timing in painting or assembly stages, minimizing vibration, mechanical stress, and product swing during transport. | |
Electric Drive and Control System
To ensure energy efficiency and operational precision, the system is equipped with a frequency-controlled electric drive and industrial-grade control unit.
Electrical Highlights:
● Supply Voltage: 400 V, 50 Hz
● Motor Efficiency: Class IE3 or above
● Insulation: Class F
● Protection Level: IP65 (dust and water resistant)
● Control Interfaces: Modbus/Profinet integration for smart factory environments
● Safety Functions: Torque limitation, soft start/stop, emergency stop (E-Stop), overload and overheating protection.
The frequency-controlled drive allows fine-tuned speed adjustment and torque optimization, ensuring steady performance, even with fluctuating loads. This setup also reduces energy consumption and extends component life — reflecting the growing demand for sustainable conveyor drive solutions.
Mechanical Strength and Reliability
The Drive Unit delivers a traction force of 8 kN with a 30% torque reserve, ensuring sufficient power under both nominal and peak operating conditions.
Mechanical Features:
● Vibration Level: ≤4.5 mm/s (RMS) at rated operation.
● Drive Chain & Components: Made from high-strength alloy steel for maximum durability.
● Corrosion Protection: C4-H class coating, total thickness ≥240–320 μm, suitable for humid and dust-intensive environments.
This robust design enables long-term reliability in demanding applications — particularly in automotive, metal finishing, and heavy industrial manufacturing.
Environmental Adaptability
Designed according to U3 climatic standards, the Drive Unit operates reliably in workshops with ambient temperatures from +15°C to +45°C and humidity levels up to 80% at 30°C.
A reinforced coating system ensures anti-corrosion protection against humidity and airborne chemicals — a common challenge in coating and painting facilities.
With its sealed motor housing and moisture-protected bearings, the Drive Unit maintains stability even under extended production cycles, reducing maintenance frequency and unexpected downtime.
Customer Benefits and Outcome
After installation, the customer reported:
1.20% reduction in energy consumption thanks to the IE3 efficiency motor.
2.Lower noise levels in the workshop environment.
3.Improved operational reliability with reduced maintenance intervals.
4.Perfect integration with the existing conveyor system, saving both time and cost.
This successful implementation demonstrates our expertise as a custom conveyor chain supplier and a trusted provider of Caterpillar Drive solutions for industrial automation.
Why Choose Us as Your Overhead Conveyor Partner
As an experienced Overhead Conveyor manufacturer, we provide:
▷Tailor-made Drive Units and Caterpillar chain systems designed for your specific line geometry.
▷Proven engineering precision for compatibility, strength, and smooth operation.
▷Complete solutions — from Drive Units to conveyor chains and trolleys.
▷Commitment to quality, safety, and after-sales service.
Whether upgrading an existing system or designing a new conveyor layout, our team ensures that every component — from the Caterpillar Drives to the control unit — performs with reliability and efficiency.
The Drive Unit for Overhead Conveyor exemplifies advanced mechanical design, robust electrical control, and industry-proven durability. By integrating precision engineering with customer-specific customization, this solution supports continuous, stable, and energy-efficient conveyor operation — essential for today's smart manufacturing facilities.
