F801 Case Conveyor Chain for LPG & Gas Bottle
- Model
- F801 Chain
Item specifics
- Material
- ZG40Cr
- Heat Treatment
- Through Hardened
- Surface Treatment
- Natural or zinc coating
- Sample
- Available
Review
Description
F801 Case Conveyor Chain for LPG & Gas Bottle Diagram:

Chain Size | Pitch | Dimensions | Average U.T.S | ||||
P | A | B | C | D | E | ||
F801 | 2.73" | 1.18" | 0.89" | 0.83" | 0.54" | 1.71" | 16800 lbs |
69.35 | 30 | 22.5 | 21 | 13.6 | 43.5 | 75KN |
F801 Case Conveyor Chain for LPG & Gas Bottle Product Information:
The F801 chain is a type of cast steel conveyor chain designed for heavy-duty applications, particularly in industries like LPG.
F801 case conveyor chain is a strong, reliable chain built for tough industrial jobs.
The chain components are heat treated to achieve greater durability and extended chain life. Designed for greater flexibility in horizontal and vertical movements.
Features:
● Pitch: 69.35 mm
● Weight/Meter: 6.1 kg
● Breaking Load: > 75KN
● Turning Radius: < 316 mm

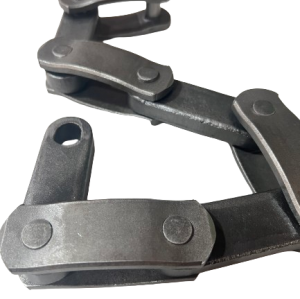

F801 Case Conveyor Chain for LPG & Gas Bottle Pictures:
