"I" Attachment for Overhead Trolley
- Model
- I Attachment
Item specifics
- Material
- 40Cr
- Heat Treatment
- Through Hardening
- Surface Treatment
- Natural
- Sample
- Available
Review
Description
"I" Attachment for Overhead Trolley Description：
The "I" Attachment for Overhead Trolley is a critical component designed to enhance the functionality and efficiency of your overhead monorail conveyors. Engineered to seamlessly integrate with overhead I beam conveyor systems, this attachment ensures smooth and reliable material handling, improving the overall performance of your conveyor setup. The "I" Attachment for Overhead Trolley is perfect for businesses looking to optimize their systems, whether they're handling heavy-duty loads or lighter items that require gentle transportation.
Choosing a reliable overhead conveyor parts supplier is key to ensuring your system's longevity and performance. The "I" Attachment for Overhead Trolley, along with other overhead I beam conveyor components, offers durability, ease of maintenance, and the ability to upgrade your system for better efficiency. With the right overhead trolley attachment, businesses can streamline their material handling processes, reduce downtime, and maximize productivity.

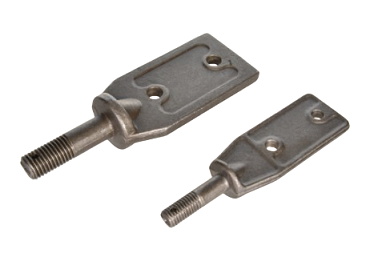

Item Picture:
"I" Attachment for Overhead Trolley Schematic Diagram：
"I" Attachment for Overhead Trolley Specification：
Trolley Size | Matched Chain | Dimensions | |||||
A | B | C | L | d1 | T | ||
6" | 678 | 2.99" | 2.76" | 0.75" | 4.02" | 0.53" | 0.47" |
76mm | 70mm | 19mm | 102mm | 13.5mm | 12mm | ||
4" | 458 | 1.77" | 2.13" | 0.69" | 3.24" | 0.41" | 0.39" |
45mm | 54mm | 17.5mm | 82.5mm | 10.5mm | 10mm | ||
3" | 348 | 1.50" | 1.88" | 0.43" | 2.76" | 0.33" | 0.25" |
38.1mm | 47.8mm | 11mm | 70mm | 8.5mm | 6.35mm | ||
Customer dimensions are also available.
