How to Select the Right I-Beam Track for Your Conveyor Trolley
- Share
- Issue Time
- May 9,2025
Summary
In industrial material handling and paint line conveyor systems, choosing the right I-beam track is crucial for ensuring smooth operation, long service life, and compatibility with your chain and trolley components.
In industrial material handling and paint line conveyor systems, choosing the right I-beam track is crucial for ensuring smooth operation, long service life, and compatibility with your chain and trolley components. Whether you're setting up a new automated conveyor system or upgrading an existing one, understanding the differences in I-beam standards and how they relate to your components is the first step.

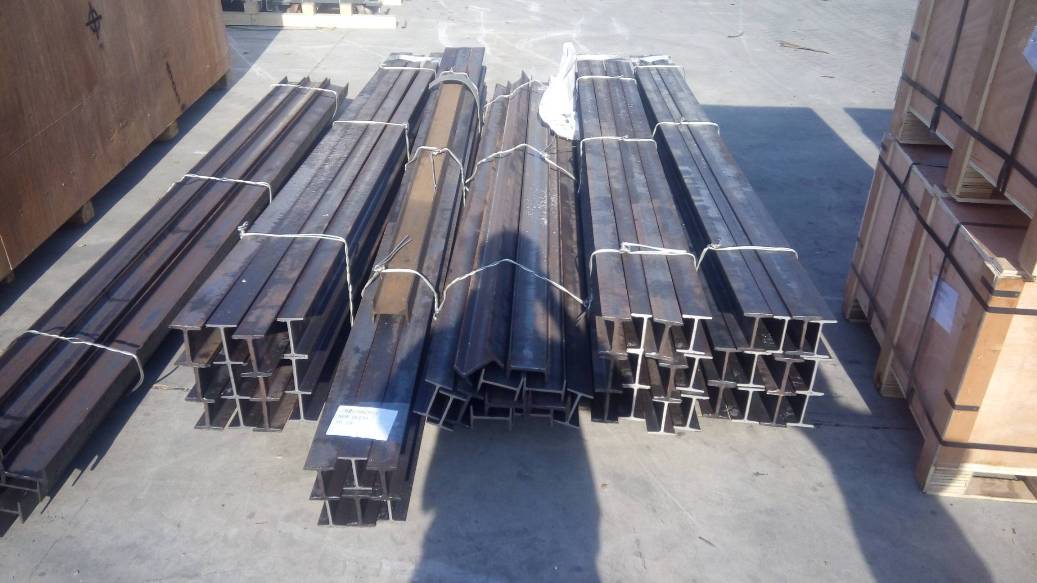

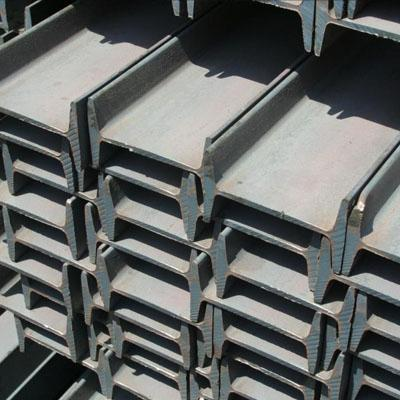

Understanding I-Beam Standards: Imperial vs. Metric.
There are two major standards for I-beams used in overhead conveyor systems: Imperial (Inch-based) and Metric.
• Imperial I-Beams (also known as English standard) are commonly used in the U.S., Canada, and Europe. The most typical sizes are:
3” I-Beam – For 3” (X-348) chain and trolley systems
4” I-Beam – For 4” (X-458) chain and trolley systems
6” I-Beam – For 6” (X-678) chain and trolley systems
• Metric I-Beams are widely used in China and Southeast Asia, with common sizes including:
#8 (80mm wide)
#10 (100mm wide)
#16 (160mm wide)
These sizes are also used with X-348/X-458/X-678 chains and trolleys and are generally accepted in the domestic and regional markets.
Chain and Trolley Compatibility
The choice of I-beam must match the chain and trolley system you're using:
| Chain & Trolley Type | Compatible I-Beam Size | Application |
| 3” (X-348) | 3” I-Beam (#8 or #10) | Light to medium-duty systems |
| 4” (X-458) | 4” I-Beam (#10) | Medium-duty paint lines, assembly conveyors |
| 6” (X-678) | 6” I-Beam (#16) | Heavy-duty overhead conveyors |
Each of these trolleys and chains has a specific width and wheel design that fits perfectly inside the corresponding I-beam size. Using the wrong size can cause abnormal wear, jamming, or derailment.
How to Choose the Right I-Beam Track
When selecting an I-beam for your paint line conveyor system or automated conveyor system, consider the following:
1. Load Requirements
Heavier loads demand stronger I-beams. For instance, X678 on a 6” I-beam supports loads up to 2400 lbs per trolley.
2. Chain and Trolley Standard
Always ensure the beam matches your 3", 4", or 6" chain and trolley system (X-348, X-458, X-678). Don’t mix metric and imperial components.
3. Availability in Your Region
In China and Southeast Asia, metric beams are common and cost-effective. However, if you're serving European or American clients, use imperial-standard beams to ensure full compatibility with their systems.
4. Material & Finish Requirements
For paint lines, where cleanliness and corrosion resistance are critical, galvanized or coated beams may be necessary.
Selecting the correct I-beam track is the foundation of a reliable industrial material handling system. Matching the beam size with your chain and trolley type—whether X-348, X-458, or X-678—is essential for safety, efficiency, and durability. For global projects, always align with the standards of your target market—imperial for Western markets, and metric for domestic or Southeast Asian installations.
If you're unsure about the right I-beam for your application, feel free to contact CamelConvey's technical team. As a manufacturer specializing in overhead conveyor parts, we provide tailored solutions for both imperial and metric systems to meet your project's needs.
