Model
Drop Forged Link Chain Flight

Item specifics

Material
40Cr/5140/41Cr4
Heat Treatment
Through Hardening
Surface Treatment
Natural
Sample
Available

Review

Description

Drop Forged Link Chain Flight Description：

The Comprehensive Guide to Drop Forged Link Chain Flights
When it comes to material handling and conveyor systems, choosing the right components is crucial for the efficiency and longevity of operations. Among these components, the drop forged link chain flight plays an integral role in industries such as agriculture, mining, and manufacturing. In this guide, we will discuss what drop forged link chain flights are, their applications, and why selecting the right manufacturer matters.

Applications of Drop Forged Link Chain Flights
These chain flights are commonly utilized in various sectors where conveying materials efficiently is essential. Here are some typical applications:
Mining Operations: Used in heavy-duty drag conveyor chains to move extracted materials from mining sites to processing plants.
Agriculture: Ideal for grain handling and other agricultural processes, where consistent movement of bulk materials is critical.
Industrial Manufacturing: Often employed in complex production lines to transport raw and processed materials seamlessly.

Types of Drop Forged Conveyor Chains
Understanding the types of chains available will help you make informed decisions when selecting the right component for your operation:
Drag Conveyor Chain: Used for horizontal or inclined transport of bulk materials, ensuring minimal material loss during transit.
Scraper Conveyor Chain: Features flights attached to move bulk materials efficiently through an enclosed conveyor system, ideal for industries like mining and cement production.

P200 Chain with Flight – A Versatile Solution
The P200 chain with flight is an excellent example of a versatile conveyor chain used in multiple industries. This type of chain is designed to handle significant loads while maintaining smooth operation. The integration of high-quality flights ensures that materials are moved uniformly, reducing the risk of jams or uneven distribution.

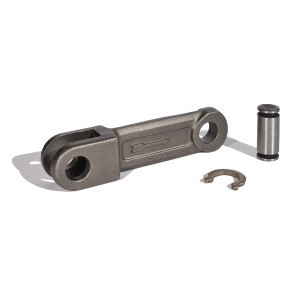

Item Picture:

Drop Forged Link Chain Flight
Drop Forged Link Chain Flight

Drop Forged Link Chain Flight Schematic Diagram：

BAR - Flight
T - Flight
U - Flight
OO - Flight
Drop Forged Link Chain Flight
Drop Forged Link Chain Flight
Drop Forged Link Chain Flight
Drop Forged Link Chain Flight

Drop Forged Link Chain Flight Specification:

Chain NO.
Pitch
Pin
Diameter
Other Dimensions
Ultimate Tensile
Strength
P
D
C
T
F
R
S
Q
（20MnCr5）
Q
(42CrMo4)
10160
4"
0.55"
1.42”
0.94"
0.39"
0.235"
0.35”
24700lbs
47200lbs
101.6mm
14mm
36mm
24mm
10mm
6mm
9mm
110KN
210KN
 10160R
4"
0.55"
1.42"
1.18"
0.53"
0.315"
0.51"
40500lbs
74200lbs
101.6mm
14mm
36mm
30mm
13.5mm
8mm
13mm
180KN
330KN
12514
4.92"
0.63"
1.42"
1.18"
0.63"
0.39"
0.59"
36600lbs
65200lbs
125mm
16mm
36mm
30mm
16mm
10mm
15mm
163KN
290KN
14218
5.59"
0.98"
1.97"
1.65"
0.81"
0.47"
0.75"
65200lbs
123700lbs
142mm
25mm
50mm
42mm
20.5mm
12mm
19mm
290KN
550KN
14226
5.59"
0.98"
1.97"
2.44"
1.18"
0.63"
1.12"
99000lbs
177700lbs
142mm
25mm
50mm
62mm
30mm
16mm
28.5mm
440KN
790KN
16025
6.30"
0.98"
1.97"
1.97"
1.63"
0.55"
0.98"
83200lbs
147300lbs
160mm
25mm
50mm
50mm
27mm
14mm
25mm
370KN
655KN
20028
7.87"
1.18"
2.36"
2.60"
1.22"
0.79"
1.18"
112500lbs
202500lbs
200mm
30mm
60mm
66mm
31mm
20mm
30mm
500KN
900KN
The dimensions of flight according to the customer's requirement.
And custom flights are also available.

Drop Forged Link Chain Flight Overview:

CamelConvey – Your Go-To Conveyor Chain Supplier

CamelConvey drop forged link chain flight is a specialized component designed to move heavy materials effectively within a conveyor system. This type of chain combines durability and strength with high resistance to wear, making it a preferred choice in demanding environments. These chains are commonly used in drag conveyor chains and scraper conveyor chains, ensuring materials are transported smoothly over long distances with minimal interruption.

When searching for a reliable conveyor chain supplier, CamelConvey stands out due to their commitment to excellence and tailored solutions. With years of experience and a strong reputation in the industry, they provide a wide range of products, including drop forged link chain flights, drag conveyor chains, and scraper conveyor chains. CamelConvey ensures that their components meet stringent quality standards, providing clients with durable, efficient, and cost-effective solutions.

Discover the CamelConvey Advantage

If you're looking for top-tier drop forged chain manufacturers, consider CamelConvey for your next project. With expertise in producing high-performance P200 chains with flights and other customized conveyor solutions, CamelConvey is your trusted partner for enhancing your operational efficiency. Reach out today to learn more about how their industry-leading conveyor chains can meet your needs and improve your material handling processes.
