Model
X228 Trolley

Item specifics

Material
SAE5140 /SAE4140/SAE8642
Heat Treatment
Through Hardening
Surface Treatment
Zinc Plating/Hot-Dip Galvanizing/Other Surface Ant
Sample
Available

Review

Description

X228 Trolley | 2" I-Beam Overhead Conveyor Trolley Description:

CamelConvey X228 Trolley is availabe in full ball complement with machined race ways with a single row of ball bearings.
They have drop forged, zinc plated brackets.
The full ball wheel with machined race ways are offered in sealed or open configuration.
The brackets are attached to the wheels by bolting.
The sealed style has a zerk fitting ofr re-lube.
This trolley is an excellent performer in conditions up to 230℃.

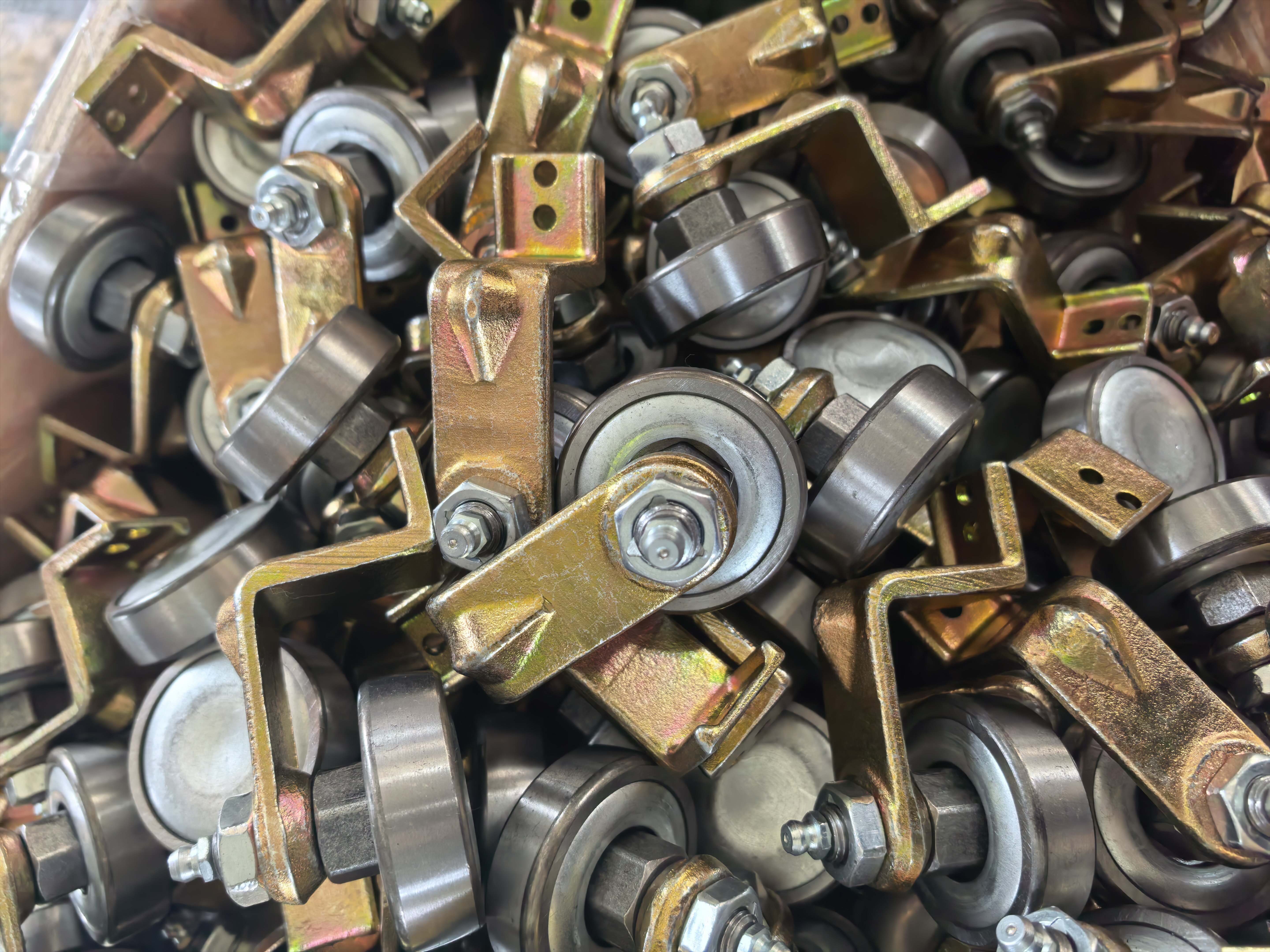

X228 Trolley | 2" I-Beam Overhead Conveyor Trolley Pictures:

X228 Trolley
X228 Trolley

X228 Trolley | 2" I-Beam Overhead Conveyor Trolley Schematic Diagram:

X228 Trolley

X228 Trolley | 2" I-Beam Overhead Conveyor Trolley Specification:

Trolley
Size
Matched
Chain
Trolley Dimensions
Trolley
Capacity
Type
B
C
D
F
2"
228
0.225"
2.44"
1.95"
0.35"
54kg
C
5.7mm
62mm
49.5mm
9mm
