4x6'' Overhead Conveyor Trolley
- Model
- 4x6'' Trolley
Item specifics
- Material
- SAE5140 /SAE4140/SAE8642
- Heat Treatment
- Through Hardening
- Surface Treatment
- Zinc Plating/Hot-Dip Galvanizing/Other Surface Ant
- Sample
- Available
Review
Description
4x6'' Overhead Conveyor Trolley Description:
The 4x6 full ball complement trolley wheel contains the maximum number of recision ball bearings and is designed for heavey duty and/or high heat applications.
The retainer type trolley wheel has each precision ball bearing separated and equally spaced around the periphery of the bearing race by a two piece steel retainer cage. The retainer type wheel is designed primarily for transportation and parts delivery systems. It is generally not suited for heavy duty or high heat applications.

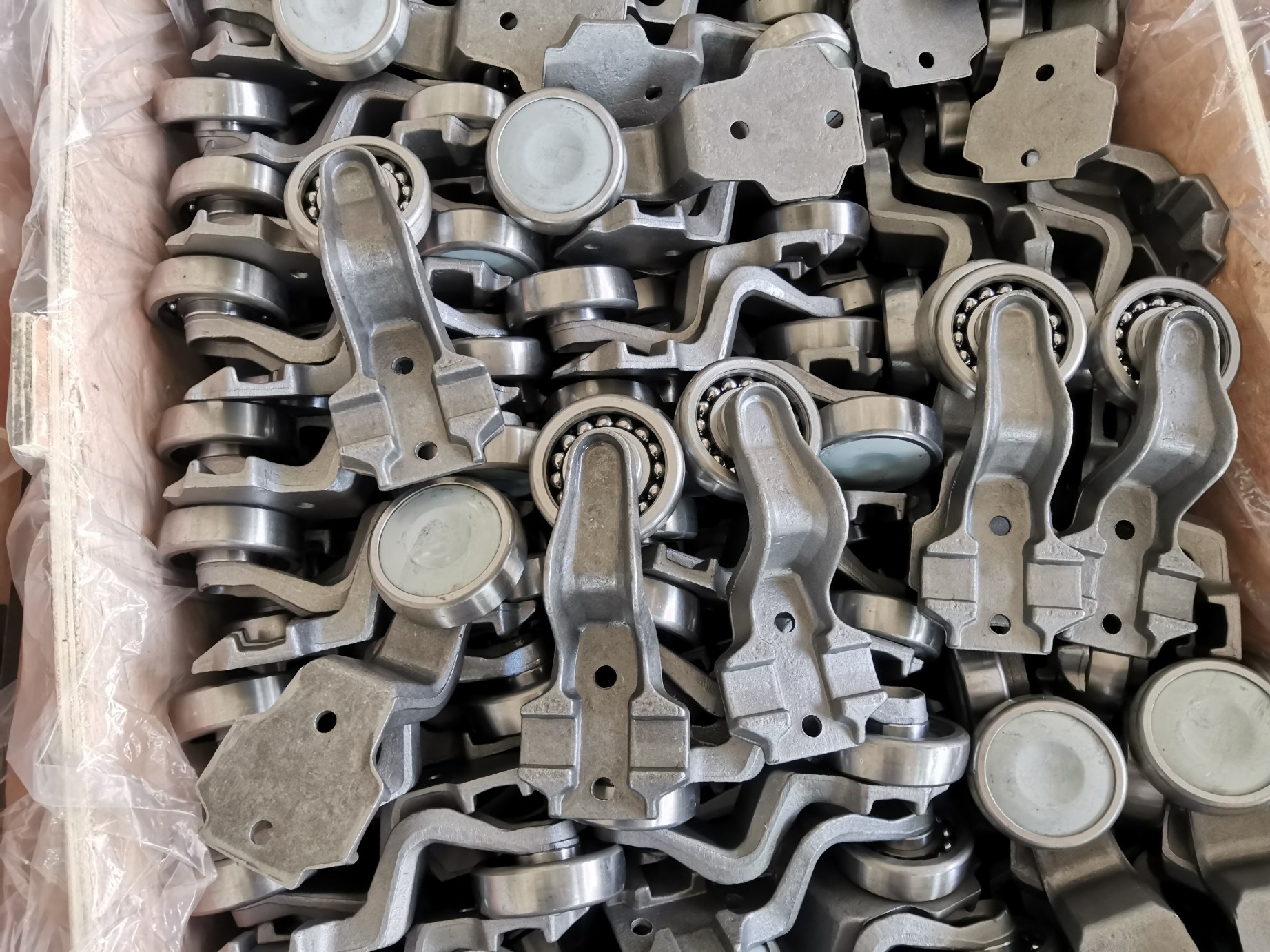

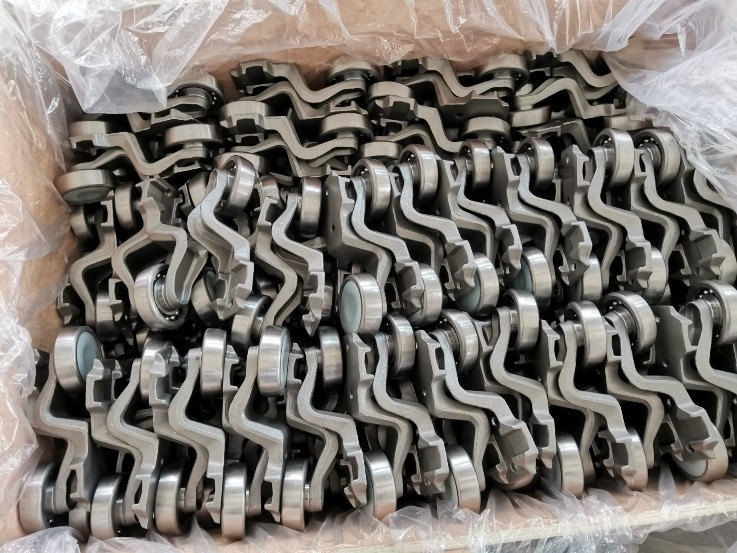

Item Picture:
4x6'' Overhead Conveyor Trolley Description:
4x6'' Overhead Conveyor Trolley Description:
Trolley Size | Matched Chain | Trolley Dimensions | Trolley Capacity | Type | |||||||
A | B | C | D | E | F | G | H | ||||
4x6" | 678 | 5.51" | 0.71" | 5.32" | 3.23" | 3.44" | 2.13" | 0.39" | 7.44" | 180kg | B |
140mm | 18mm | 135mm | 82mm | 87.5mm | 54mm | 10mm | 188.9mm |
