Model
Pusher Dog

Item specifics

Material
Alloy Steel
Sample
Available

Review

Description

Forged Rivetless Chain Pusher Dog | Power and Free Conveyor Components Description:

Pusher dogs work with power and free conveyor trolleys and systems. These conveyors provide direct, positive control of each load in the system making them ideally suited to industrial applications that demand maximum versatility, productivity, and efficiency. This high level of control is due to the dual track configuration of power free systems. The main (or “power”) track is a chain-driven conveyor that moves carriers through the system.

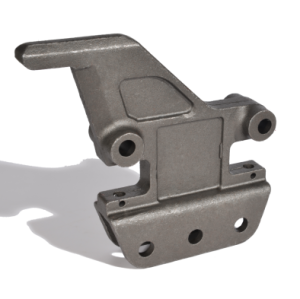

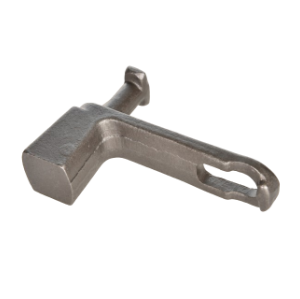

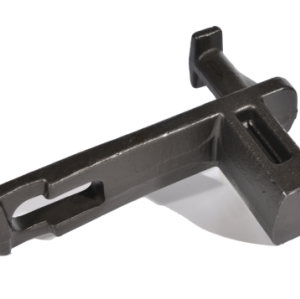

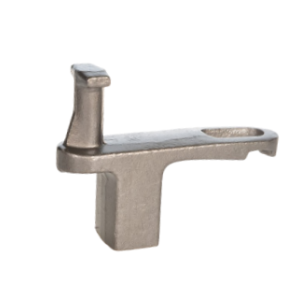

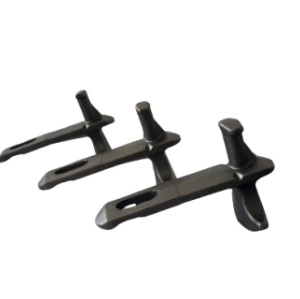

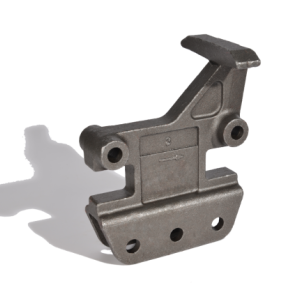

Forged Rivetless Chain Pusher Dog | Power and Free Conveyor Components Pictures:

push dog
push dog

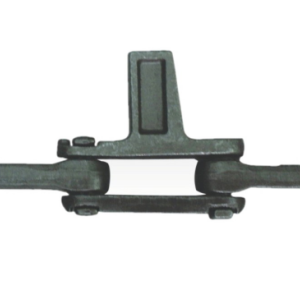

Forged Rivetless Chain Pusher Dog | Power and Free Conveyor Components Schematic Diagram:

push dog

Forged Rivetless Chain Pusher Dog | Power and Free Conveyor Components Specification:

Chain No.
Nominal Pitch
Actual Pitch
Pin Diameter
Pin Length
Other Dimensions
P
D
L
A
B
C
678
6''
6.03''
0.87''
3.03''
2''
1.18''
3.23''
152.4mm
153.2mm
22mm
77mm
50.8mm
30mm
82mm
160
6.03''
6.3''
0.87''
3.03''
2''
1.18''
3.11''
160mm
160mm
22mm
77mm
50.8mm
30mm
79mm
