Chain Attachment Pusher Dog
- Model
- Pusher Dog
Item specifics
- Material
- Alloy Steel
- Surface treatment
- Shot Peening
- Sample
- Available
Review
Description
Pusher Dog | Chain Attachment Description：
Chain attachment pusher dog work with power and free conveyor trolleys and systems. These conveyors provide direct, positive control of each load in the system making them ideally suited to industrial applications that demand maximum versatility, productivity, and efficiency. This high level of control is due to the dual track configuration of power free systems. The main (or “power”) track is a chain-driven conveyor that moves carriers through the system.

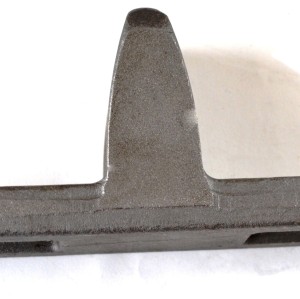

Item Picture:
Pusher Dog | Chain Attachment Schematic Diagram：
Pusher Dog | Chain Attachment Specification:
Chain No. | Nominal Pitch | Actual Pitch | Pin Diameter | Pin Length | Other Dimensions | |||
P | D | L | A | B | C | E | ||
X348 | 3" | 3.02'' | 0.5” | 1.81" | 1.1" | 1.06" | 2.38” | 2.95'' |
76.2mm | 76.6mm | 12.7mm | 46mm | 28mm | 27mm | 60.5mm | 75mm | |
X458 | 4'' | 4.03'' | 0.625'' | 2.24'' | 1.42'' | 1.34'' | 2.77'' | 3.62'' |
101.6mm | 102.4mm | 15.88mm | 57mm | 36mm | 34mm | 70.3mm | 92mm | |
X678 | 6'' | 6.03'' | 0.87'' | 3.03'' | 2'' | 1.42'' | 3.23'' | 3.94'' |
152.4mm | 153.2mm | 22mm | 77mm | 50.8mm | 36mm | 82mm | 100mm | |
