Model
P2-80-160,P2-80-290,P2-100-200

Item specifics

Material
SAE5140 /SAE4140/SAE8642
Heat Treatment
Through Hardening
Surface Treatment
Zinc Plating/Hot-Dip Galvanizing/Other Surface Ant
Sample
Available

Review

Description

Metric Forged Chain | High Load Capacity Description:

Dropped Forged Chain is commonly used in conveyor systems, material handling equipment, and other heavy-duty applications. The chain is capable of withstanding high loads and is designed to operate in harsh environments.

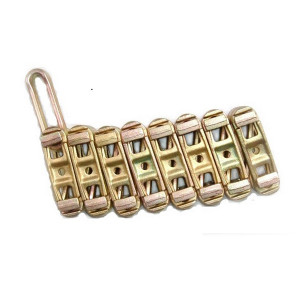

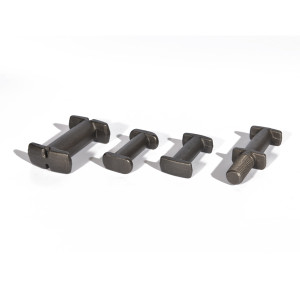

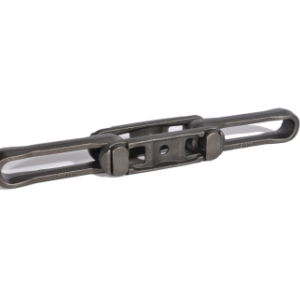

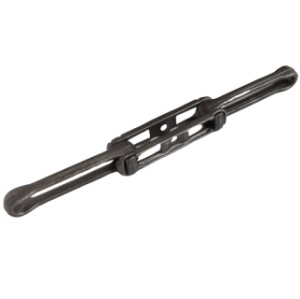

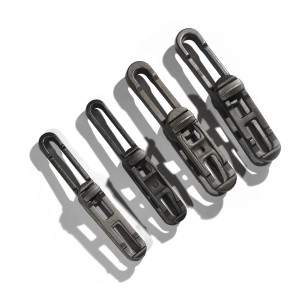

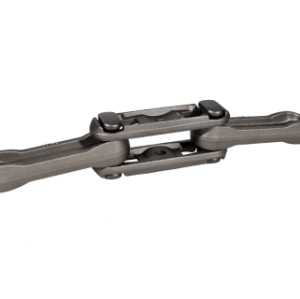

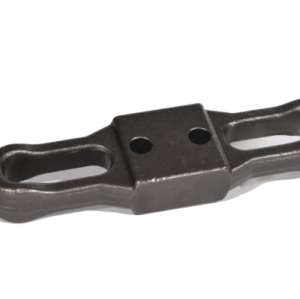

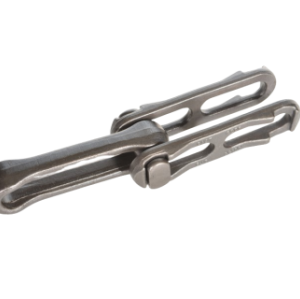

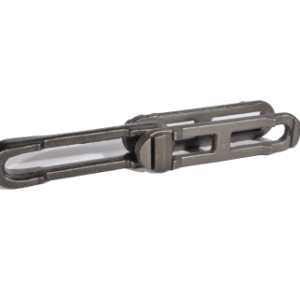

Metric Forged Chain | High Load Capacity Pictures:

Metric Forged Chain
Metric Forged Chain

Metric Forged Chain | High Load Capacity Schematic Diagram:

Metric Forged Chain

Metric Forged Chain | High Load Capacity Specification:

Chain No.
Pitch
Pin Diameter
Pin Length
Other Dimensions
Ultimate Tensile Strength
Type
P
D
L
A
B
C
E
Q
P2-80-106
80mm
12mm
48mm
29mm
13mm
18.8mm
13.5mm
106 KN
Regular
P2-80-290
80MM
18.4mm
73mm
42mm
20mm
32mm
19mm
290 KN
Regular
P2-100-220
100mm
16mm
57mm
36mm
16mm
25.4mm
17.4mm
220 KN
X
