X658 Forged Rivetless Chain | I Beam Conveyor Chain
X658 Forged Rivetless Chain | I Beam Conveyor Chain
X658 Forged Rivetless Chain | I Beam Conveyor Chain
Model
X658 Chain

Item specifics

Material
SAE5140 /SAE4140/SAE8642
Heat Treatment
Through Hardening
Surface Treatment
Zinc Plating/Hot-Dip Galvanizing/Other Surface Ant
Sample
Available

Review

Description

X658 Forged Rivetless Chain | I Beam Conveyor Chain Description:

When it comes to industrial automation, particularly in sectors such as automotive and heavy manufacturing, reliable conveyor systems are essential. Among the various components that ensure the smooth functioning of these systems, CamelConvey X658 Drop Forged Rivetless Chain stands out for its durability, flexibility, and efficiency.

The X658 Forged Rivetless Chain for assembly line overhead conveyor and automated overhead conveyor systems finds its use in a variety of industries, such as:
Automotive Industry: Ensures seamless movement of car parts during the assembly process.
Warehousing and Logistics: Supports the automated transport of goods and packages.
Food Processing: Used for moving products through various stages of production in hygienic conditions.
Heavy Manufacturing: Perfect for handling bulky items that need to be moved with precision and efficiency.

Ready to optimize your overhead conveyor solution? Contact CamelConvey today for more information on the X658 Forged Rivetless Chain for automated overhead conveyor systems and other industry-leading conveyor solutions.

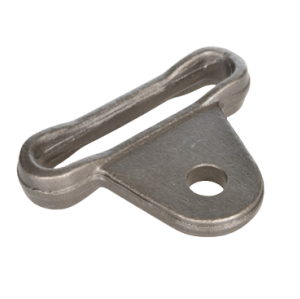

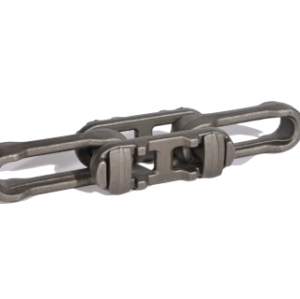

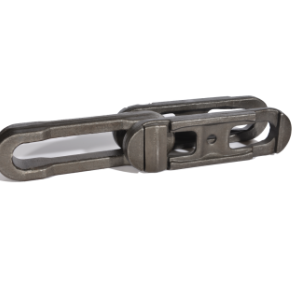

X658 Forged Rivetless Chain | I Beam Conveyor Chain Pictures:

X658 chain
X658 chain

X658 Forged Rivetless Chain | I Beam Conveyor Chain Schematic Diagram:

X-Type
Regular-Type
S-Type
X658 chain
X658 chain
X658 chain

X658 Forged Rivetless Chain | I Beam Conveyor Chain Specification:

Chain NO.
Normal Pitch
Actual Pitch
Pin Diameter
Pin Length
Other Dimensions
Ultimate Tensile Strength
P
D
L
A
B
C
E
Q
X658
6"
6.03"
0.625"
2.244"
1.42"
0.63"
1.02"
0.69"
47250lbs
152.4mm
153.2mm
15.88mm
57mm
36mm
16mm
25.8mm
17.5mm
210KN
