700 Class Sugar Mill Pintle Chain
- Model
- 700 Class
Item specifics
- Material
- 40Cr
- Heat Treatment
- Through Hardening
- Surface Treatment
- Natural
- Sample
- Available
Review
Description
700 Class Sugar Mill Pintle Chain Description:
Pintle chains are amongst one of the earliest forms of conveyor chains to have been used, There are several different classes of pintle chain ranging from 400-Class to 900-Class, each class has specific features intended for specific industries and applications.
700 Class pintle chains are primarily used in clarifiers, bar screens, and other conveying applications.
We offer cast, steel, plastic 700 class pintle chains as well as a complete line of attachments and sprockets.
Available with Riveted or Cottered construction;
High strength with minimal weight;
Closed bearing construction.

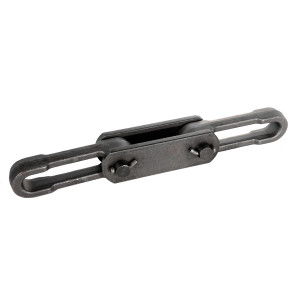

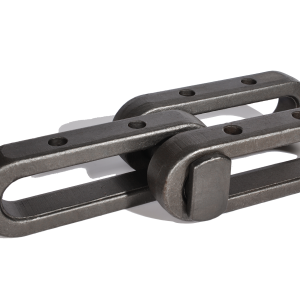

700 Class Sugar Mill Pintle Chain Pictures:
700 Class Sugar Mill Pintle Chain Schematic Diagram:
700 Class Sugar Mill Pintle Chain Specification:
Chain NO. | Pitch | Dimensions | Average U.T.S | |||
P | A | B | D1 | D2 | ||
720S | 6" | 1.56" | 1.13" | 0.75” | 1.44" | 30000 lbs |
152.4mm | 39.6mm | 28.7mm | 19.05mm | 36.6mm | 133 KN | |
730 | 6" | 1.75" | 1.13" | 0.75" | 1.5" | 30000 lbs |
152.4mm | 44.45mm | 28.7mm | 19.05mm | 38.1mm | 133 KN |
Customer dimensions are also available.
