XT160 Drop Forged Rivetless Chain
- Model
- XT160 Chain
Item specifics
- Material
- SAE5140 /SAE4140/SAE8642
- Heat Treatment
- Through Hardening
- Surface Treatment
- Zinc Plating/Hot-Dip Galvanizing/Other Surface Ant
- Sample
- Available
Review
Description
XT160 Drop Forged Rivetless Chain Description：
The XT160 Dropped Forged Chain is commonly used in conveyor systems, material handling equipment, and other heavy-duty applications. The chain is capable of withstanding high loads and is designed to operate in harsh environments.

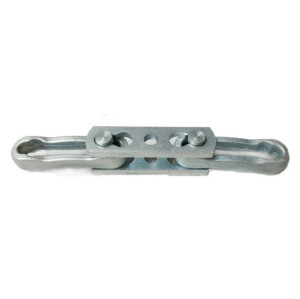

XT160 Drop Forged Rivetless Chain Pictures：
XT160 Drop Forged Rivetless Chain Schematic Diagram：
XT160 Drop Forged Rivetless Chain Specification:
Chain No. | Pitch | Pin Diameter | Pin Length | Other Dimensions | Ultimate Tensile Strength | Type | |||
P | D | L | A | B | C | E | Q | ||
XT160 | 6.3" | 0.945” | 3.07" | 2.13" | 0.81" | 1.36” | 1.1" | 92250 lbs | Regular |
160mm | 22.2mm | 78mm | 54mm | 20.5mm | 34.5mm | 28mm | 410 KN | ||
